Security PCBAs form the foundation of various security electronics, smart systems, and interfaces. With rising demands for smart buildings, enhanced security, and sophisticated access control systems in residential, commercial, and industrial areas, the compatibility of security device PCBAs or security PCB assembly with the software, operational features, and environmental aspects of contemporary systems is increasingly crucial.

We provide a diverse range of Printed Circuit Boards for use in electronic security products. These include Flexible Circuit (FPC), High Multilayer Circuit Board, Metal Core PCB, and HDI PCB. Our PCB Products are extensively used in CCTV monitors, wireless alarm systems, and a variety of other electronic security products.

Why Circuit Boards are Used in the Security System Industry

The use of circuit boards in the security system industry is increasingly significant. Circuit boards are fundamental to the operation of various security devices such as security cameras, monitoring equipment, motion detectors, and burglar alarms. Their prevalence in the security sector has been on a consistent upswing due to advancements in smart technology, which have streamlined and enhanced crime prevention capabilities, with PCBs ensuring the efficient functioning of these systems.

PCBs are integral to numerous elements of security systems, ranging from single-function ID badges to miniature electronic chips in cards and phones. They are pivotal in these applications, offering tailored solutions and adaptability to compact hardware designs. Modern PCB assemblies also boast resistance to environmental factors like moisture, dirt, and UV exposure.

Beyond home security, PCB boards also enhance vehicle safety and connectivity. Today’s most sophisticated security systems are connected to the internet, allowing the transmission of data from the PCB to the user interface.

Surveillance cameras, a focal point in the security industry, have benefited greatly from advancements in PCB manufacturing. Modern cameras can store vast amounts of footage, making surveillance more cost-effective. These cameras can connect to electronic hardware and management software, facilitating video storage and providing crucial management data.

Security Equipment PCB Design

Security devices, particularly in surveillance and access control, demand compact yet high-density designs. High-density interconnect (HDI) PCBs are pivotal in achieving this, allowing more components in a smaller space without impacting performance. Moreover, these devices often face harsh environments, necessitating PCBs that can endure physical stress, extreme temperatures, and exposure to elements. Materials such as FR4, polyimide, and protective conformal coatings play a pivotal role in enhancing the durability and longevity of PCBs.

In addition, effective power management is critical, especially for battery-operated or remote security devices. PCB design focuses on minimizing power consumption while optimizing performance, utilizing low-power components and efficient layouts. Furthermore, maintaining signal integrity and electromagnetic compatibility (EMC) is essential in environments with high electromagnetic interference (EMI). This is achieved through meticulous trace routing, grounding, and shielding to prevent data corruption and ensure reliable operation.

Modern security systems require advanced connectivity for remote operations, necessitating the integration of communication modules like Wi-Fi, Bluetooth, or cellular connections in PCB designs. In addition, for applications needing flexibility, such as wearable security devices, rigid-flex PCBs offer a space-saving solution. High processing power in security devices generates substantial heat, making thermal management critical. This is addressed through strategic component placement, heat sinks, thermal vias, and in some cases, active cooling systems, to sustain device reliability and extend its lifespan.

Which Security Products and Systems Need PCB Assemblies?

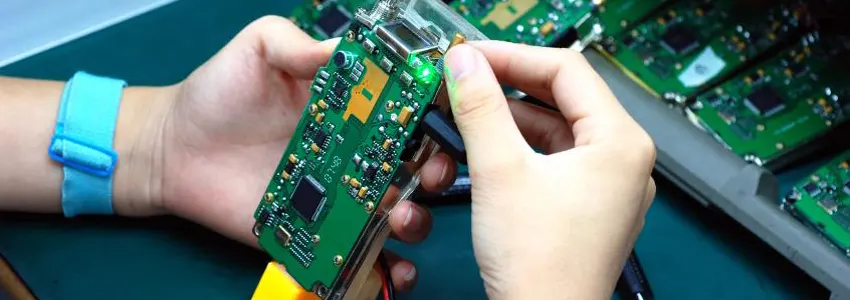

PCB for signal safety

PCBs are essential in security systems due to their ability to integrate and control various electronic components efficiently and reliably. Here are some key security products and systems that extensively use PCB assemblies:

Surveillance Cameras: These cameras use PCBs to process visual data, control camera functions (like zoom and focus), and handle the transmission of video feeds. Advanced PCBs in these systems may also include features for image processing and motion detection.

Access Control Systems: These include card readers, biometric scanners (like fingerprint or retina scanners), and keypad entry systems. PCBs in these devices manage data processing, user interface, connectivity, and control mechanisms.

Intrusion Detection Systems: Such as motion detectors, glass break sensors, and door/window sensors. PCBs in these devices are responsible for signal processing, triggering alarms, and integrating with larger security systems.

Alarm Systems: Both residential and commercial alarm systems rely on PCBs for connecting various sensors and detectors, processing signals, and managing alarm triggering and communication with monitoring centers.

Fire Detection and Alarm Systems: These systems include smoke detectors, heat detectors, and fire alarms. PCBs in these devices are critical for sensing environmental changes, processing sensor data, and initiating alarm systems.

Video Doorbells and Smart Locks: These are part of the emerging smart home security products. PCBs in these devices handle video/audio processing, connectivity (often wireless), and interface with smartphones or other smart devices.

Communication Systems: Including intercoms and emergency communication systems used in security contexts. PCBs are used to manage audio processing, signal transmission, and user interface functionalities.

Electronic Gates and Barrier Systems: PCBs are used in the control systems of electronic gates, barriers, and automated bollards, managing mechanisms like motor control, access control integration, and safety features.

Network Security Devices: These include firewalls and other network monitoring tools that are integral to cyber security in physical security systems. PCBs in these devices handle data processing, network traffic analysis, and connectivity.

Automotive Security Systems: Like car alarms and immobilizers, which use PCBs for integrating various sensors, controlling alarm systems, and interfacing with the vehicle’s central computer.

Choose Fastlink for High-Quality PCB Manufacturing

PCBs represent modern circuit board designs that employ various etching and milling methods to form circuitry on laminate materials. This technique produces circuit boards that are more robust, have an extended lifespan, and are less susceptible to damage in mobile or outdoor environments. These qualities make them well-suited for use in access control and security systems.

At Fastlink, we are committed to manufacturing durable, high-performance PCBAs that conform to strict design standards. We are certified by ISO 9001, AS9100D, and RoHS. Our manufacturing and added-value services ensure the reliability of PCBAs for home, business, and industrial security systems. Whether you need security PCBAs for a system controller or assemblies capable of managing complex sensing and command operations, Fastlink is equipped to assist.
